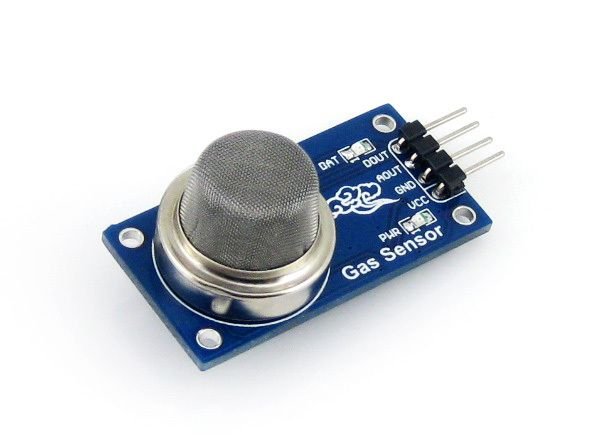

Overview
The MQ-2 Gas Sensor is designed to detect a range of gases, making it an essential component for any gas detection system. It is widely used in various applications, from home safety alarms to industrial monitoring. Its high sensitivity and quick response time make it a popular choice among makers and hobbyists.
What's in the box
- 1 x MQ-2 Gas Sensor
- 1 x User Manual
Key features
- Detects LPG, propane, methane, and smoke
- High sensitivity and quick response time
- Analog output for easy integration
- Compatible with Arduino and other microcontrollers
- Low cost and easy to use
How it works
The MQ-2 sensor works by measuring the concentration of various gases in the air. It contains a sensitive material that changes resistance when exposed to gas. This change in resistance is converted into an analog voltage signal, which can be read by a microcontroller. The sensor can be calibrated for different gases to improve accuracy.
Getting started
- Connect the MQ-2 sensor to your microcontroller using the specified pins.
- Power the sensor with the required voltage (typically 5V).
- Read the analog output from the sensor using your microcontroller's ADC.
- Calibrate the sensor for the specific gas you want to detect.
- Implement your detection logic in your code.

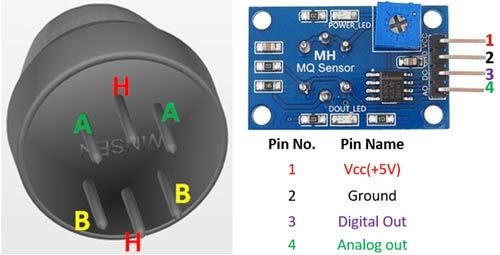

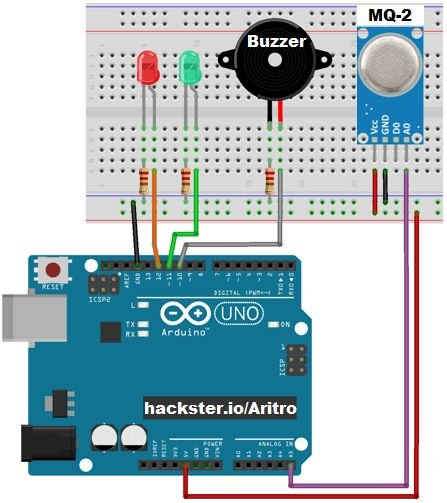

Wiring / connections
Connect the MQ-2 sensor as follows:
- VCC to 5V
- GND to Ground
- A0 to Analog Pin (for reading the output)
Tips & troubleshooting
- Ensure the sensor is properly powered to avoid inaccurate readings.
- Calibrate the sensor regularly for best performance.
- Keep the sensor away from direct sunlight and humidity for accurate results.
Safety notes
When working with gas sensors, ensure that you are in a well-ventilated area and follow safety guidelines for handling gases.
