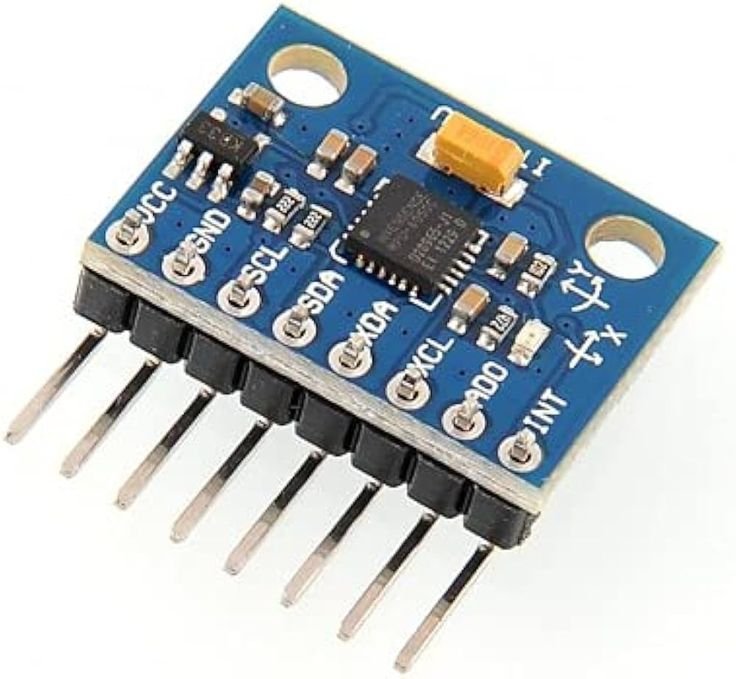

MPU-6050 Accelerometer and Gyroscope

0 0 reviews SKU: MPU6050-ACCEL-001
RWF 5,500

The MPU-6050 is a versatile 6-axis motion tracking device that combines a 3-axis accelerometer and a 3-axis gyroscope. It is ideal for hobbyists and professionals looking to integrate motion sensing into their projects. With its compact design and high accuracy, it enables precise motion detection for applications such as robotics, drones, and wearable devices.

1

The MPU-6050 is a versatile 6-axis motion tracking device that combines a 3-axis accelerometer and a 3-axis gyroscope. It is ideal for hobbyists and professionals looking to integrate motion sensing into their projects. With its compact design and high accuracy, it enables precise motion detection for applications such as robotics, drones, and wearable devices.

Weight 6g
Voltage 3V to 5V
Interface I2C
Dimensions 20mm x 20mm
Sensitivity 16384 LSB/g (for ±2g)
Gyroscope Range ±250, ±500, ±1000, ±2000 degrees/sec
Package Contents 1 x MPU-6050 Sensor Module, 1 x Wiring Connector, 1 x Basic User Manual
Power Consumption 5mA
Accelerometer Range ±2g, ±4g, ±8g, ±16g
Operating Temperature -40°C to +85°C

Overview

The MPU-6050 sensor is a highly reliable and widely used motion tracking device. It provides both accelerometer and gyroscope data, making it perfect for various applications that require motion sensing. This device is suitable for both beginners and advanced users who want to explore the world of motion tracking.

What's in the box

  1. MPU-6050 Sensor Module
  2. Wiring Connector
  3. Basic User Manual

Key features

  1. 6-axis motion tracking (3-axis accelerometer and 3-axis gyroscope)
  2. High sensitivity and accuracy
  3. I2C interface for easy connectivity
  4. Low power consumption
  5. Built-in Digital Motion Processor (DMP)
  6. Compact size for easy integration
  7. Wide operating voltage range (3V to 5V)

How it works

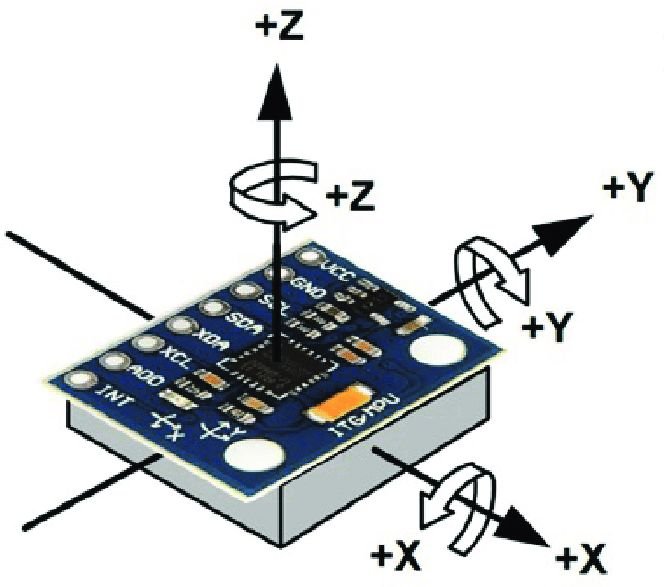

The MPU-6050 uses MEMS technology to measure acceleration and angular velocity. The accelerometer detects changes in motion along the X, Y, and Z axes, while the gyroscope measures the rate of rotation. Together, these sensors provide comprehensive motion data that can be processed by microcontrollers for various applications.

Getting started

  1. Connect the MPU-6050 to your microcontroller using the I2C interface.
  2. Install the necessary libraries for your programming environment (e.g., Arduino IDE).
  3. Upload the sample code to your microcontroller to test the sensor.
  4. Read the sensor data and start integrating it into your project.

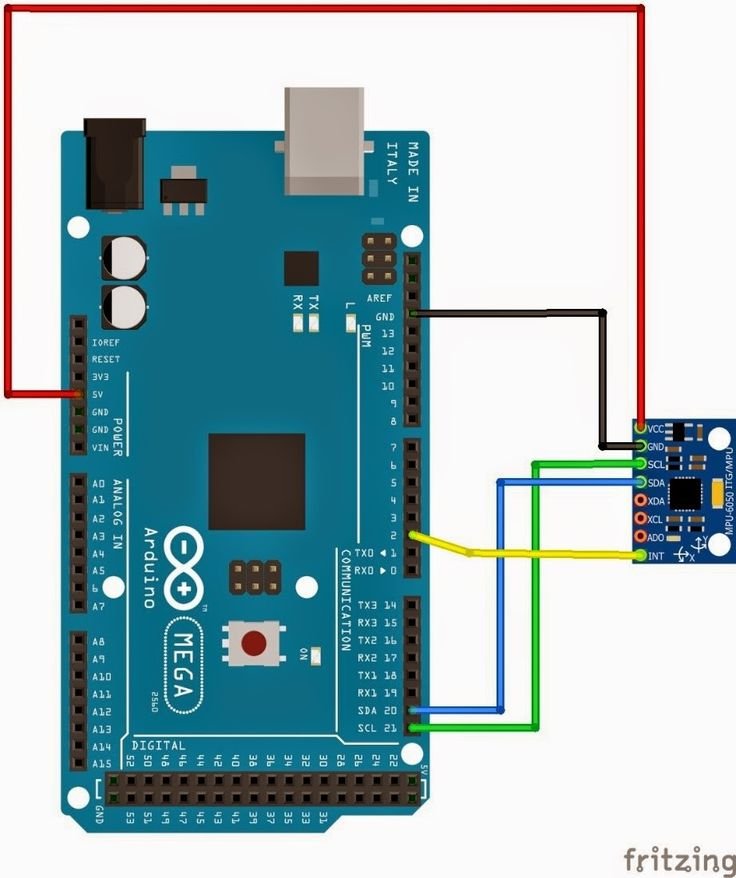

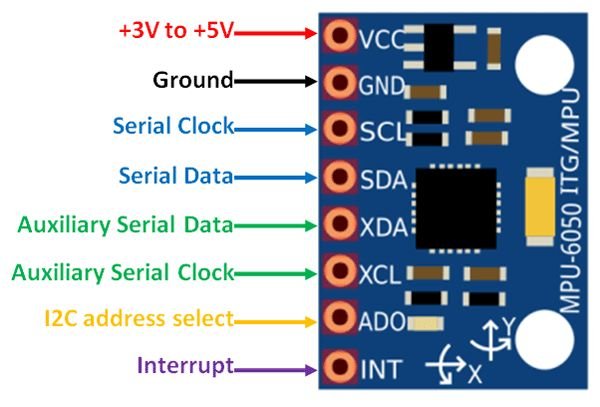

Wiring / connections

Connect the MPU-6050 to your microcontroller as follows:

  1. VCC to 3.3V or 5V
  2. GND to Ground
  3. SDA to I2C Data Line
  4. SCL to I2C Clock Line

Tips & troubleshooting

  1. Ensure proper power supply to avoid sensor malfunction.
  2. Check the wiring connections for any loose connections.
  3. Use pull-up resistors on the I2C lines if necessary.
  4. Refer to the user manual for troubleshooting common issues.

Safety notes

Handle the MPU-6050 with care to avoid damaging the sensor. Avoid exposing it to extreme temperatures or moisture.
