GPS Neo-6M V2 Module

0 0 reviews SKU: GPS-NEO6M-V2-001
RWF 13,200

The GPS Neo-6M V2 Module is a high-performance GPS receiver designed for easy integration into your projects. Ideal for hobbyists and makers, this module provides accurate location data and is perfect for applications such as robotics, drones, and outdoor navigation. Its compact design and user-friendly interface make it a great choice for beginners and experienced developers alike.

1

The GPS Neo-6M V2 Module is a high-performance GPS receiver designed for easy integration into your projects. Ideal for hobbyists and makers, this module provides accurate location data and is perfect for applications such as robotics, drones, and outdoor navigation. Its compact design and user-friendly interface make it a great choice for beginners and experienced developers alike.

EEPROM Yes
Weight 9g
Baud Rate Up to 115200 bps
Interface UART
Dimensions 25mm x 35mm
Sensitivity -165 dBm
Antenna Type Passive
GNSS Support GPS, GLONASS
Acquisition Time < 1 second
Package Contents GPS module, antenna, JST connector cable, user manual
Operating Voltage 3.3V to 5V
Current Consumption 50mA (max)
Operating Temperature -40°C to +85°C

Overview

The GPS Neo-6M V2 Module is a powerful GPS receiver that can be easily integrated into various electronic projects. With its high sensitivity and fast acquisition time, it is suitable for applications that require precise location tracking. This module can be used in a wide range of projects, from simple location-based applications to complex navigation systems.

What's in the box

  1. 1 x GPS Neo-6M V2 Module
  2. 1 x Antenna
  3. 1 x JST connector cable
  4. 1 x User manual

Key features

  1. High sensitivity: -165 dBm
  2. Fast acquisition time: < 1 second
  3. Supports multiple GNSS systems: GPS, GLONASS
  4. Compact design for easy integration
  5. Low power consumption
  6. UART interface for easy communication
  7. Configurable baud rate (up to 115200 bps)
  8. Built-in EEPROM for storing configuration settings

How it works

The GPS Neo-6M V2 Module receives signals from GPS satellites and calculates its position using triangulation. It communicates with microcontrollers through a UART interface, allowing you to easily integrate it into your projects. The module can output location data in various formats, making it versatile for different applications.

Getting started

  1. Connect the GPS module to your microcontroller using the provided JST connector cable.
  2. Power the module with a suitable voltage (3.3V to 5V).
  3. Install any necessary libraries for your microcontroller platform (e.g., Arduino).
  4. Upload a sample code to your microcontroller to start receiving GPS data.
  5. Monitor the output on your serial monitor to see the location data.

Wiring / connections

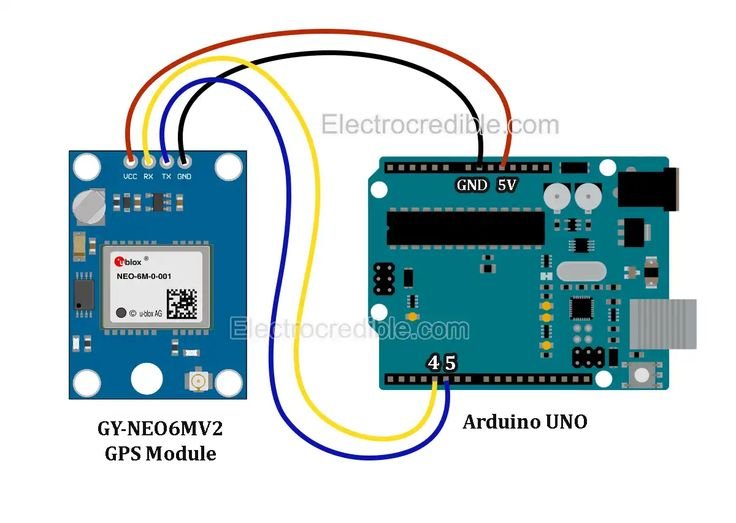

Connect the module's TX pin to the RX pin of your microcontroller and the RX pin of the module to the TX pin of your microcontroller. Ensure that the power and ground connections are properly made.

Tips & troubleshooting

  1. Ensure the module has a clear view of the sky for optimal satellite signal reception.
  2. Check the baud rate settings in your code to match the module's configuration.
  3. If you are not receiving data, try resetting the module or checking your connections.
  4. Use an external antenna for better signal strength if necessary.

Safety notes

Always ensure that the power supply voltage does not exceed the module's specifications to avoid damage.
